A Systems-Level Approach to Reference-Class Performance Featuring the HYPERSUB F-21

Client Profile

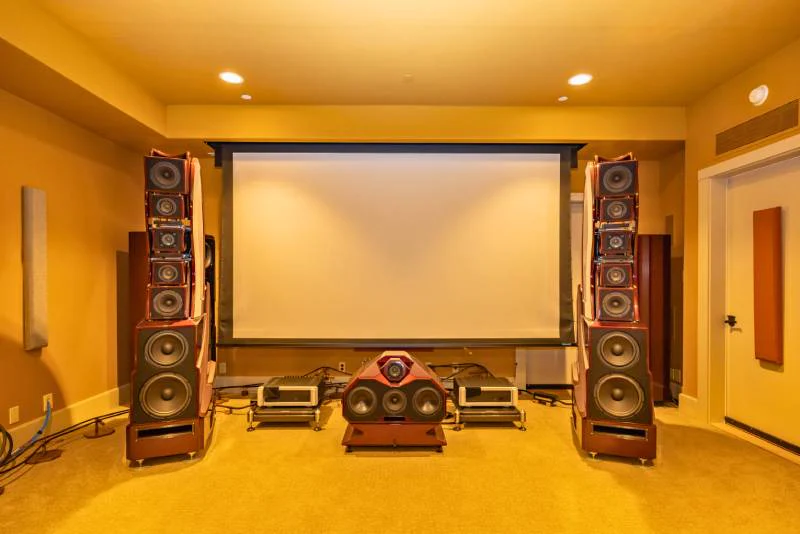

Our client is a lifelong audiophile who has spent years refining his listening environment through disciplined equipment upgrades. The system features flagship loudspeakers and high-performance electronics — components capable of extraordinary output and resolution.

Yet despite investing in world-class equipment, the room had reached a performance ceiling. The system was powerful. It was detailed. But it was no longer scaling with hardware improvements.

That plateau led to a fundamental realization: the room - not the equipment - had become the limiting factor.

Project Overview

The client initially engaged Acoustic Frontiers for a professional acoustic analysis. The intent was to evaluate room behavior and determine whether incremental adjustments could improve performance.

Measurement quickly revealed something more fundamental. The system was not the limiting factor. The room was.

The acoustical analysis identified:

• Left/right frequency response differences due to asymmetric room geometry and a large window on one wall.

• Non-flat frequency response with a large peak and dip range below 100Hz caused by speaker, subwoofer, and listener placement.

• Strong and subjectively very objectionable resonances between 55–65Hz, which significantly degraded bass timbre, resolution, and articulation.

• Inconsistent decay times across frequencies, particularly below 300Hz, due to insufficient bass absorption in the room.




The existing speakers and subwoofers delivered ample SPL output, but this was not the issue. Response flatness and resonance control was.

As a result, the scope expanded from acoustic analysis to engineered a full room redesign, including acoustic treatment design and subwoofer number/placement optimization. The objectives became clearly defined:

• Restore left/right symmetry to stabilize stereo imaging and soundstaging

• Improve sub-100 Hz linearity by integrating multiple subwoofers to actively manage room modes and speaker boundary interference effects

• Reduce resonances and improve decay consistency across the whole frequency range through acoustic treatment

• Control side wall, front wall, back wall and ceiling reflections through acoustic treatment

Overall, the goal was to elevate the room from enthusiast-grade installation to predictable, engineered performance. This was not an equipment upgrade. It was a systems integration project aligning architecture, acoustics, stereo subwoofer deployment, and signal processing into a cohesive performance strategy designed to deliver measurable, repeatable results.

Room Overview and Challenges

The existing system faced common real-world limitations:

• Inconsistent bass across seats

• Peaks and nulls from modal interaction

• Weak integration between subwoofers and speakers

• Performance that varied depending on position

These issues are not solved by calibration alone. They require system-level redesign.

Solution and Why HYPERSUB

Acoustic Frontiers re-engineered the system using modeling to define a new architecture.

Acoustic Frontiers' Solutions

The solution was built around a single premise: you can’t calibrate your way out of physical problems. If the room is injecting modal resonances, strong early reflections, uneven decay, and boundary-driven cancellations, the equipment won’t behave as engineered - no matter how capable the components are.

Symmetrize the Room

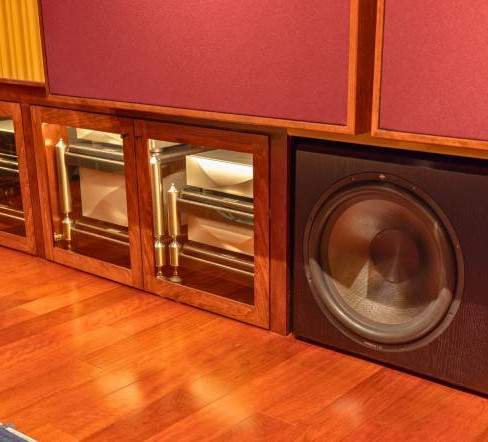

The first step was architectural correction. The existing window was removed, and the side wall line was extended to restore boundary symmetry. Niches were built into the side walls to accommodate subwoofers and equipment. New soffits were added and aligned to create consistent perimeter conditions.

This shifted the room from asymmetric to symmetric, an absolute foundational requirement for the best stereo imaging and soundstaging.

Manage <100Hz Energy

The original configuration was front-loaded. Physics says stereo speakers and subs located at the front of the room cannot adequately control room modes under 100Hz. Acoustic Frontiers introduced additional subwoofers along the side and rear boundaries in carefully calculated positions, including four HYPERSUB F-21 units, to improve modal control and provide levers to optimize frequency response flatness at calibration phase.

This changed the critically important sub-100Hz bass response room from wildy varying to manageable and controllable.

Engineer Full-Surface Acoustic Treatment

Acoustic treatment was engineered, not decorative. Custom metal plate bass traps, hybrid absorber/diffuser configuration custom designed and built by acoustic frontiers, integrated cavity venting, and coordinated front, side, rear, ceiling, and floor strategies were implemented with precisely calculated placement derived from in-depth acoustical modeling. Low-frequency decay control, reverberation time and reflected energy were addressed intentionally.

Acoustic Frontiers Wave Diffusers pictured above

Resolve Structural Conflicts Without Compromising Geometry

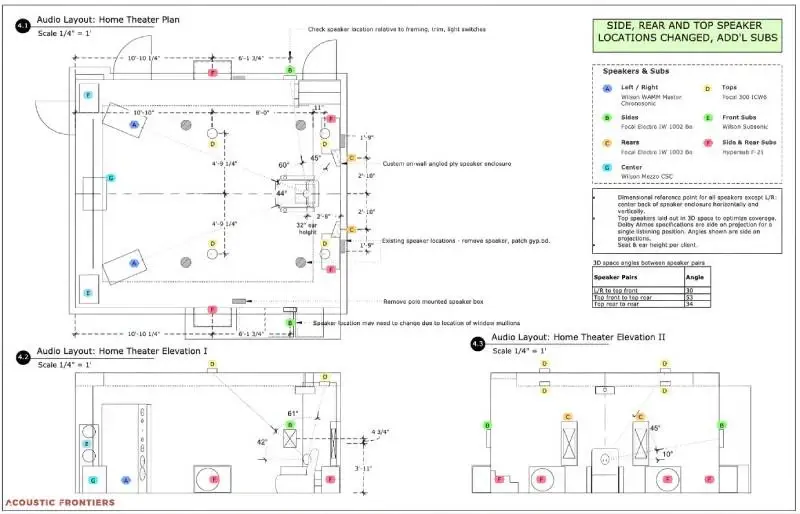

The relatively low ceiling and joist layout created placement conflicts for Atmos channels and lighting. Rather than abandon ideal geometry, speaker placement was adjusted in three-dimensional space, front and rear top symmetry was preserved where shifts were required, and lighting was coordinated to maintain proper coverage angles. The lighting plan was designed by Acoustic Frontiers to highlight equipment and architectural features.

The room was engineered around performance geometry — not convenience.

Integrate System Infrastructure

Dedicated rack alcoves, custom rear speaker enclosures, hardwood flooring with controlled rug placement, and coordinated signal path and amplifier deployment ensured that every element supported a unified performance strategy.

We did not simply treat the room. We corrected asymmetry, rebuilt structural boundaries, redistributed low-frequency sources, engineered decay control, and preserved speaker geometry within physical constraints.

The result was a room transformed from a high-end enthusiast installation into a controlled, multi-sub, symmetry-restored, performance-engineered environment.

What Changed

The measurable win was not a single curve, but can be clearly seen across all aspects of room acoustic behavior.

Before:

• System performance varied by seat

• Bass response was inconsistent

• Calibration was compensating for structural issues

After:

• System behavior defined through modeling

• Improved consistency across the listening area

• Better integration with the front stage

• Performance driven by design—not correction

Results

The system now performs as a unified whole:

• Consistent bass response across seats

• Reduced modal issues

• Improved clarity and integration

• Stable performance at all playback levels

The system transitioned from equipment-driven to system-engineered.

Upgrading equipment doesn’t always deliver better results—optimal performance comes from engineering how the entire system interacts with the room.

In the Words of the Client

"My goal was to upgrade the basement into the best possible music listening room, constrained only by its dimensions. Based on listening and measurements, Acoustic Frontiers did better than that: the four-sub HYPERSUB Frontier F-21 system, (..each subwoofer built around a 21-inch driver), along with its DSP amplifier, and 13 Acoustic Frontiers sound treatment panels enabled an incredibly pleasing, spatial, large, dynamic, and accurate sound. They are just the right match for a pair of Wilson Audio Master Chronosonic speakers and subs, Roon Nucleus source, dCS DAC, Spectral main channel amplification, Transparent cabling, and Enphase battery power comprising the rest of the stereo system. I could not be happier!" ~ A.S

Real-World Engineering. Real-World Modeling. Real-World Performance. Real-World Results.
