A Home Theater that Disappears into the Room

Completion Year: 2025

Client Profile

Unlike a fully enclosed dedicated theater, this project centered on a hybrid media room — a space designed to serve multiple purposes without sacrificing performance.

The client wanted cinematic impact and immersive sound, but within a room that remained open, inviting, and architecturally integrated into the home. It needed to function as a daily living environment while delivering high-performance playback when called upon.

That balance — lifestyle integration without performance compromise — is where system-level engineering becomes critical.

Project Overview

The room needed to serve two distinct identities.

By day, it should feel open, inviting, and connected to the rest of the home. By night, it should disappear into a deeply immersive cinematic environment. No “theater theme,” no blacked-out cave—just a warm, modern living space that happens to perform at a reference level.

To accomplish this, we collaborated closely with Acoustic Frontiers, Guild Craft Builder and Archevon, the architect and interior designer of the home. The result is a media room that doesn’t immediately announce itself as a theater—but becomes one the moment the lights go down.

Room Overview

The room measures 20’8” × 16’8” × 10’10”, with a large window along the rear wall. This brought welcome natural light into the space during the day, but also required thoughtful planning to control reflections and maintain contrast during movie playback.

Engineering a Hybrid Environment

In open-concept spaces, low-frequency behavior can become unstable. Without full boundary containment, bass energy can disperse unevenly. One seating location may feel powerful, while another feels diminished or inconsistent.

The solution was not simply “more subwoofers.” It was controlled deployment.

Acoustic Frontiers modeled the room’s modal distribution and boundary interaction before construction was finalized. Subwoofer placement was optimized to:

• Reinforce modal balance

• Improve seat-to-seat consistency

• Minimize destructive interference

• Maintain crossover stability with the main speakers

The objective was clear: ensure the system behaved predictably despite architectural compromises inherent to a hybrid layout.

Acoustic Frontiers Solutions

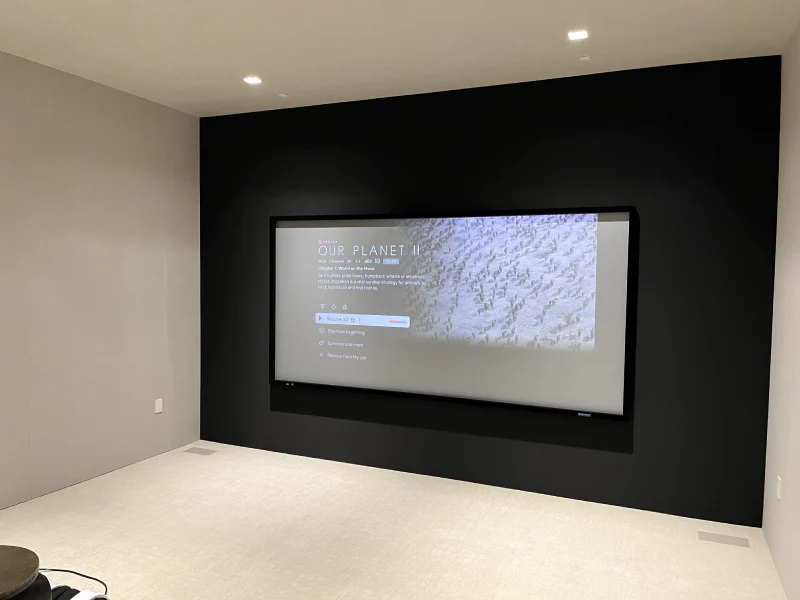

Rather than eliminate or darken the room to control light, we leaned into its dual-use nature. The large rear window was preserved as part of the room’s everyday character, and we specified a projection system capable of maintaining high contrast performance in both ambient and blackout conditions. The Sony VPL-VW5000ES laser projector paired with a Stewart Filmscreen Firehawk G5 (2.07:1 constant image area, acoustically transparent micro-perforated material) allows the room to function comfortably during the day while still delivering reference-quality cinematic images when the Lutron blackout shade is engaged.

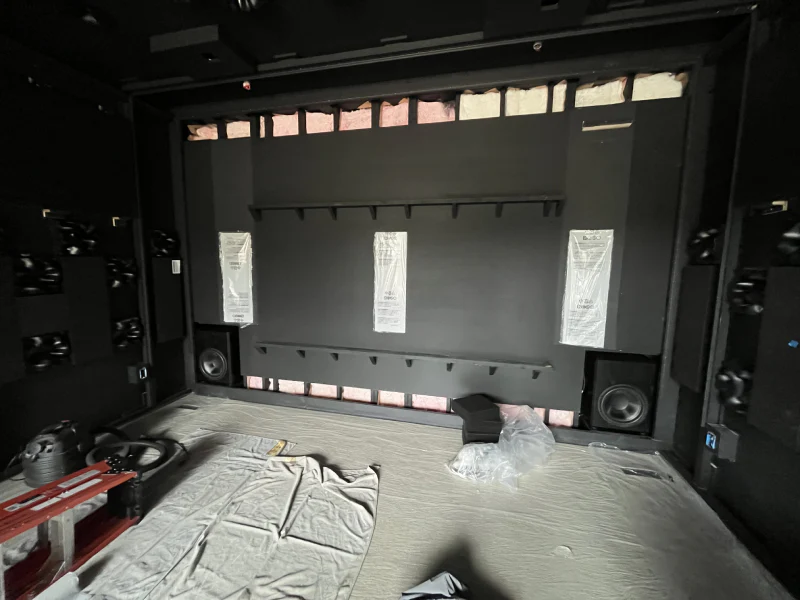

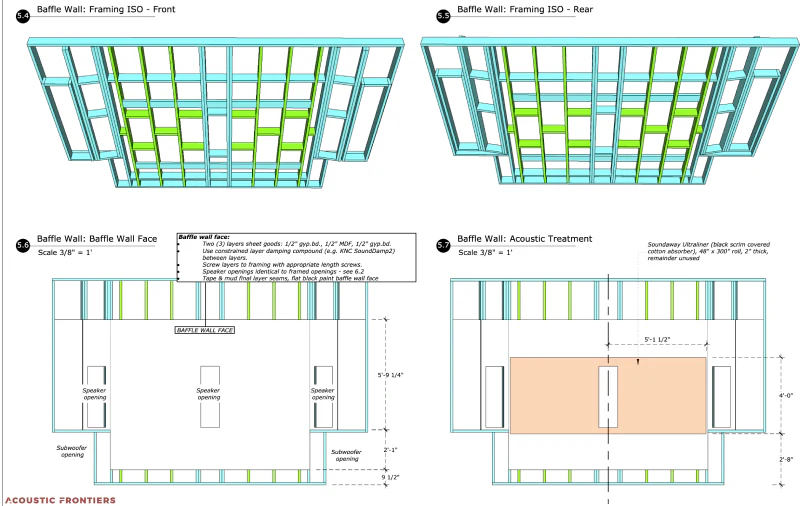

Our work included the Core Home Theater Design Package, sound isolation design, and custom baffle wall design, along with equipment infrastructure planning, structured pre-wire, and rack build. We installed and integrated the projector, screen, speaker system, and subwoofer, programmed the RTI control system, and performed final audio and video calibration, including Dirac ART tuning.

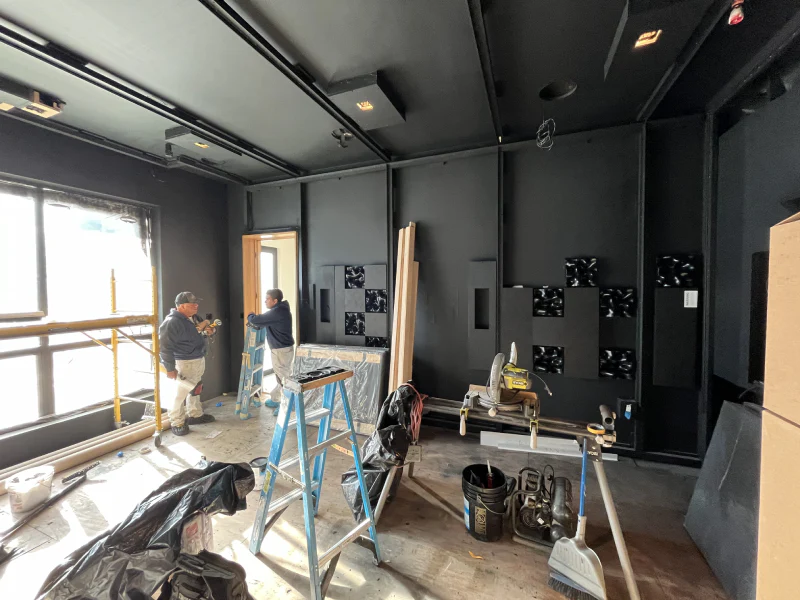

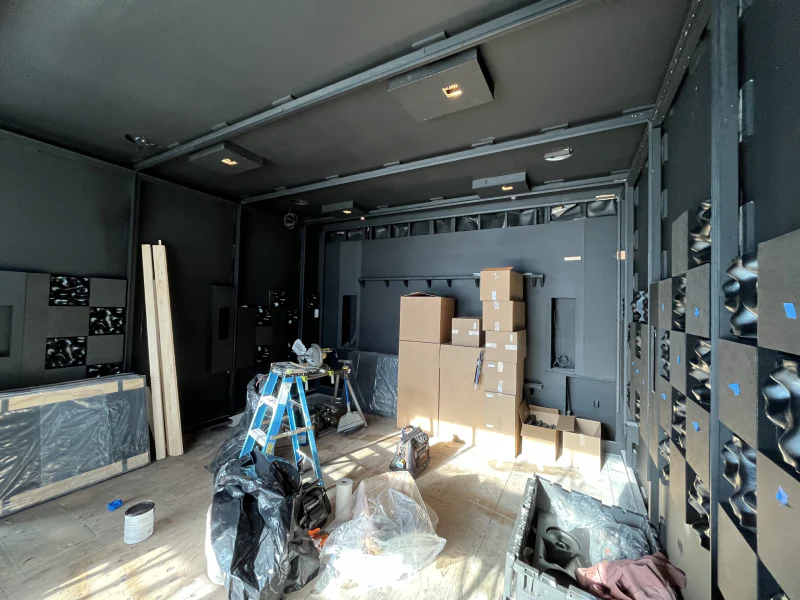

Throughout the project, we coordinated closely with Guild Custom Builders and Archevon to ensure that performance infrastructure—loudspeakers, acoustic treatment, wiring pathways, and equipment ventilation—was built into the room during construction, rather than added later. This allowed the space to retain a warm, modern aesthetic while supporting a fully immersive Dolby Atmos experience when the system is in use.

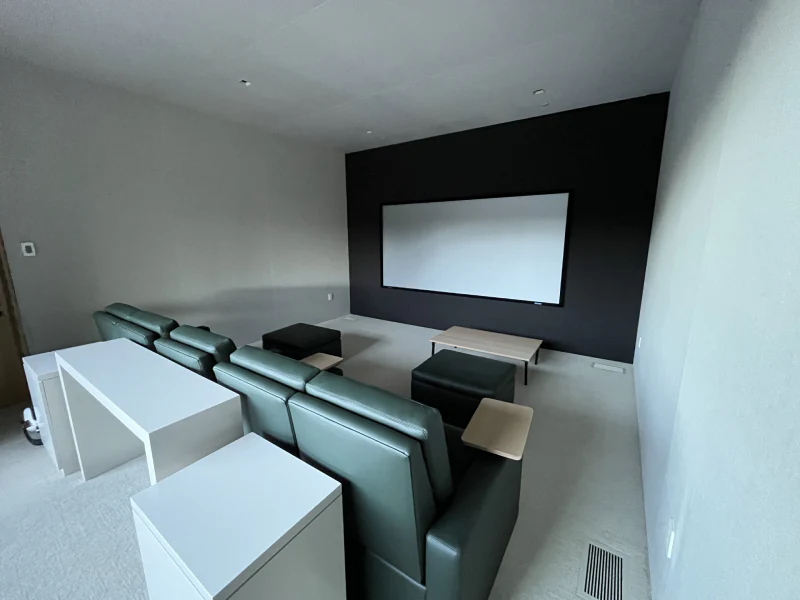

The result is a media room that works as part of the home during the day, and as a cinema when the lights go down—without compromising either identity.

Low-Frequency System: HYPERSUB Deployment

At the core of the system is a strategically deployed HYPERSUB array powered by a matched HYPERSUB amplifier platform.

This is not a case of placing subwoofers where convenient. It is a validated low-frequency architecture designed to behave predictably under real playback conditions.

In hybrid environments, HYPERSUB’s engineering advantages become particularly relevant:

• Controlled transient response

• High headroom without compression

• Stable behavior through the crossover region

• Infrasonic extension without mid-bass tradeoff

• Repeatable calibration results

Where open rooms often produce uneven bass or exaggerated peaks and nulls, this system maintains articulation and impact across the seating area.

The result is bass that feels intentional — not accidental.

Equipment Breakdown

Audio System: 9.4.6 Dolby Atmos

• Front LCR: JBL Synthesis SCL-2 (behind screen in custom baffle wall)

• Surrounds: JBL Synthesis SCL-7

• Overheads: JBL Synthesis SCL-5

• Low-Frequency System: HYPERSUB™ F-15** powered by the HYPERSUB™ 422D amplifier

  • Selected for low distortion, low compression, and consistent bass character from quiet listening levels through full reference playback.

  • Delivers bass that feels present and powerful without sounding boomy or drawing attention to the subwoofer.

Processor & Amplification

• StormAudio ISP Elite with Dirac ART

• StormAudio PA16 amplifier

Video System

• Sony VPL-VW5000ES laser projector

• Stewart Filmscreen Firehawk G5, 2.07:1 constant image area, micro-perforated acoustically transparent material

• madVR Envy Extreme MK2 video processor

Sources

• Kaleidescape Strato C + Terra 22TB

• Apple TV

• Gaming consoles

• Roon

Power

• Torus Power AVR2 isolation transformer




Control

• RTI control system with mode-based operation:

  • Watch – Day: Projector in high-brightness mode, seating-area lighting softly illuminated

  • Watch – Night: Full blackout cinema mode with optimized reference video calibration

  • Listen: Projector off; room lighting shifts for music listening (two-channel or immersive)

The Results

Hybrid rooms often struggle to reconcile lifestyle design with reference-level playback.

This project proves that compromise is not inevitable — if the system is engineered holistically.

Dialogue remains intelligible. Surround immersion is cohesive. Bass impact is authoritative without boom. Most importantly, performance remains consistent regardless of seating position. The room does not fight the system.

The system works with the room.

Designed for Real Rooms. Validated for Real Performance.

Hybrid media rooms represent one of the most demanding residential environments for low-frequency reproduction.

They are unpredictable by default.

HYPERSUB systems are engineered specifically to close the gap between laboratory measurement and in-room behavior — delivering predictable, repeatable performance in environments where guesswork would otherwise dominate.

When paired with Acoustic Frontiers’ data-driven design and calibration process, the result is not just powerful bass.

It is controlled, integrated, and stable low-frequency performance that enhances both cinematic playback and everyday living.

In the Words of the Client

"I was very excited to be one of the first customers for the HYPERSUB Frontier system. I was looking for a system that could integrate seamlessly with Dirac Live ART and my Storm Audio processor, but I also wanted infrasonic frequency support in my room. With a sealed 15" driver in each corner, I have plenty of headroom and every single person who sits in my room is convinced there are bass shakers somewhere in my couch thanks to the room pressurization. While the sub system is top notch, it was Acoustic Frontiers' expert calibration and integration that truly took the experience to the next level. I can't recommend this system enough." ~V.S.

Learn More

View extended project documentation and progress highlights on the Acoustic Frontiers Instagram.

For technical specifications and product details on HYPERSUB™ systems, visit www.hypersubwoofers.com
